Robot Design

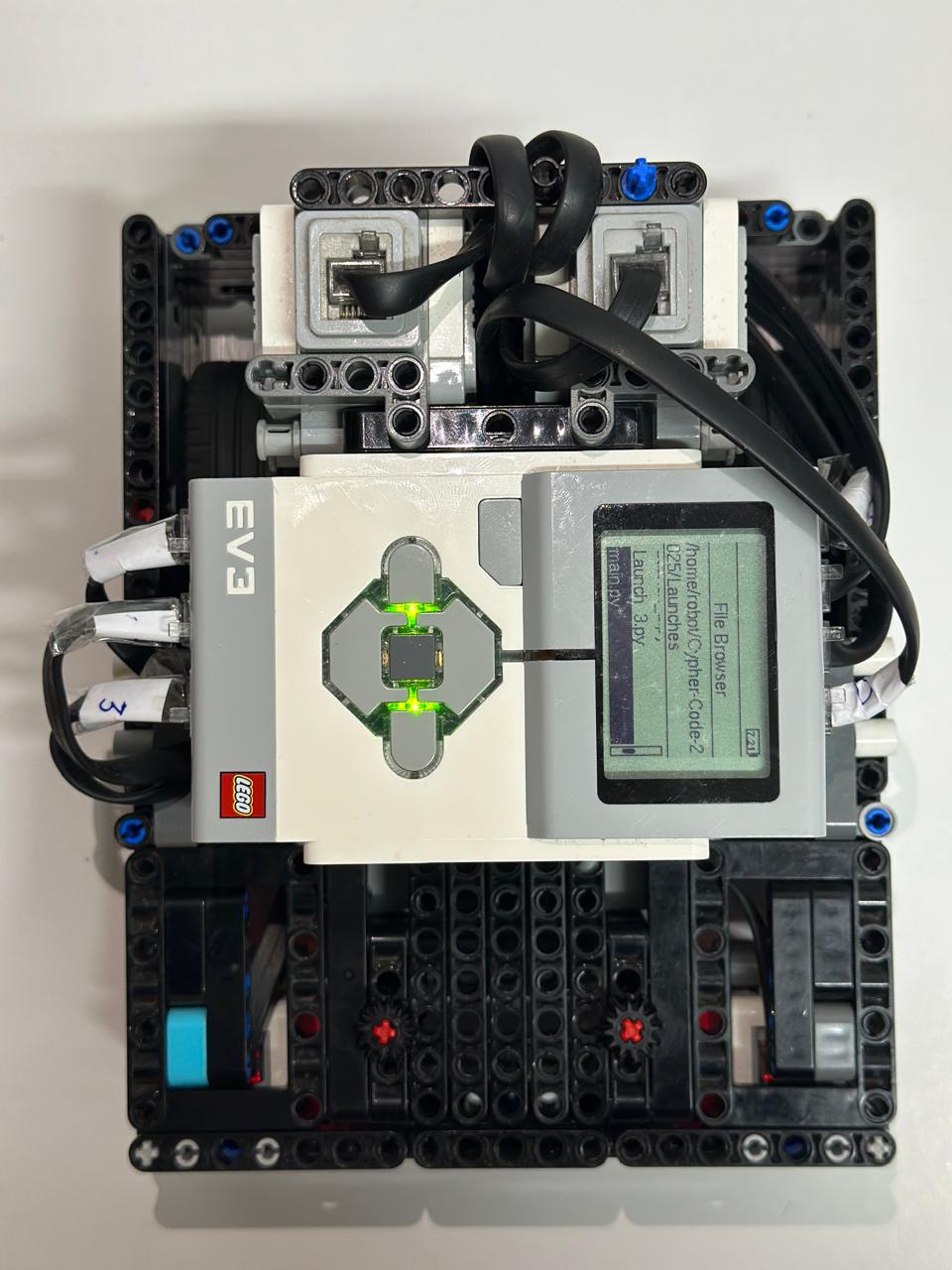

Front Robot

EV3 Mindstorm

Controls the Robot

Large Motors

Moves Wheel

Attachments Gear

Moves the motor gears

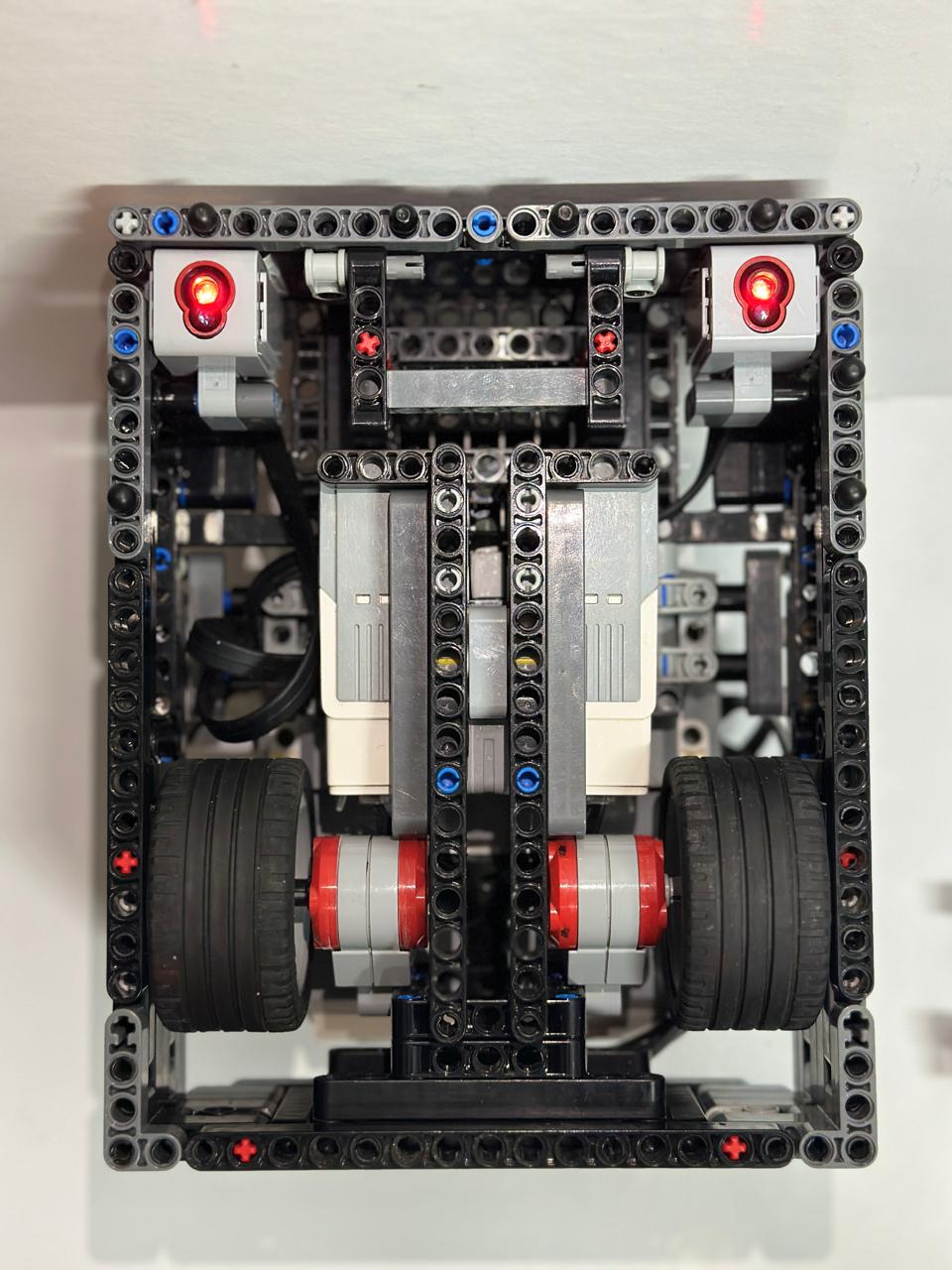

Front Robot

Color Sensor

Reads Mat Color

Gyro Sensor

Mesures Angles

Meduim Motors

Moves Attachments

EV3 Wheels

Moves the Robot

Connector with Ball

Balances The Robot

Robot Attachments

Artificial Habitat Ar

CY-01

Missons :- Sample Collection / Angular Fish | Mechanism :- Active | Gear-Ratio : | Total Points :- 55 points

See How it Works
Artificial Habitat Arm

CY-02

Missons :- Coral Nursery / Coral Buds / Scuba Diver / Shark | Mechanism :- Active | Gear-Ratio : 5:1 , 14:1 | Total Points :- 90 points

See How it Works
Artificial Habitat Arm

CY-03

Missons :- Coral Reef / Scuba Diver / Raise The Mast | Mechanism :- Passive / Active | Gear-Ratio : 10:3 , 1:288 | Total Points :- 90 points

See How it Works
Artificial Habitat Arm

CY-04-1

Missons :- Artificial Habitat / Unexpected Encounter | Mechanism :- Active | Gear-Ratio : 5:1 , 1.6:1 | Total Points :- 40 points

See How it Works
Artificial Habitat Arm

CY-05-2

Missons :- Research Vessel | Mechanism :- Passive | Gear-Ratio : None | Total Points :- 40 points

See How it Works
Artificial Habitat Arm

CY-05

Missons :- Sonar Discovery / Feed The Whale / Send Over the Submersible | Mechanism :- Active / Passive | Gear-Ratio : 5:1:1 , 2:6 | Total Points :- 130 points

See How it Works
